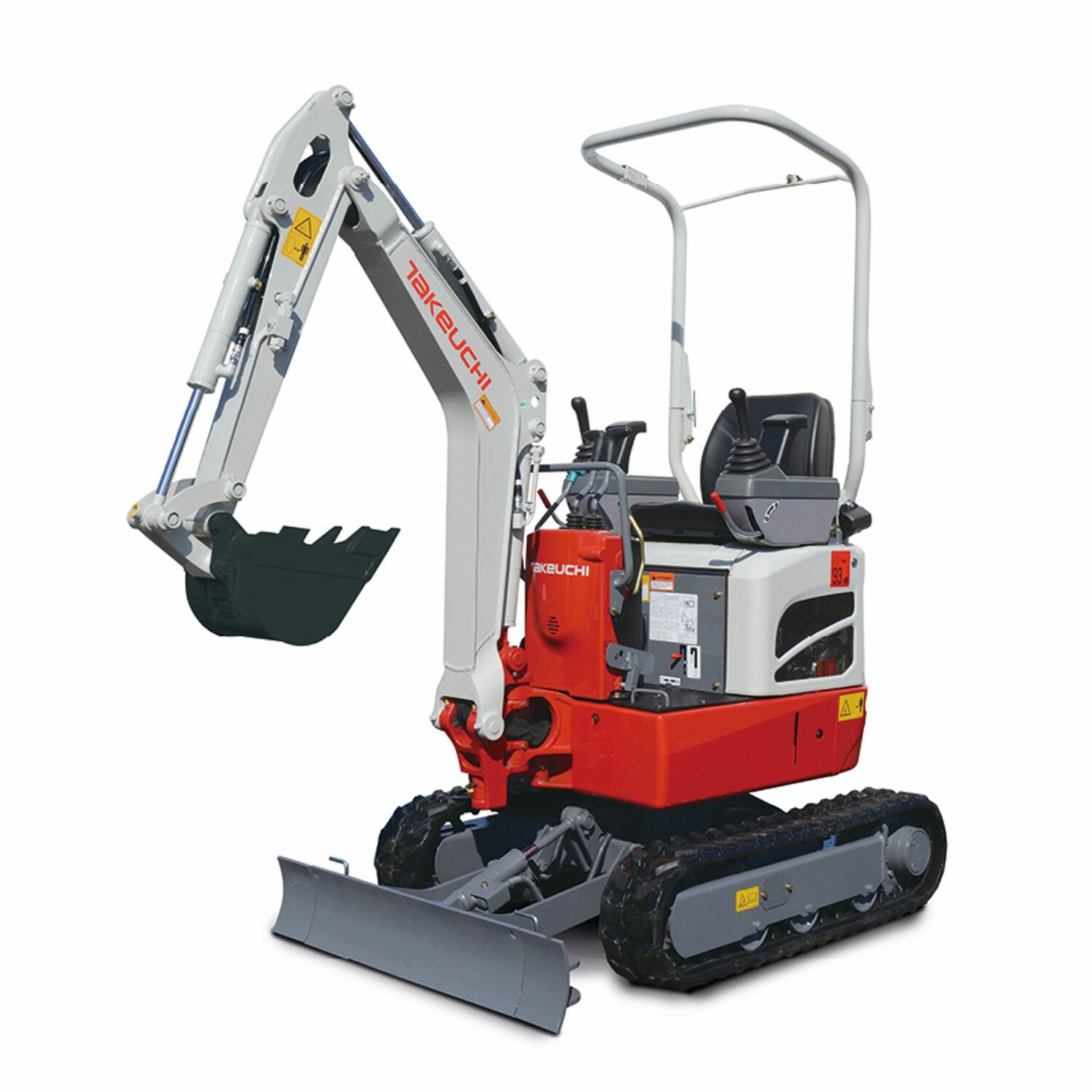

Takeuchi Compact Mini Digger Excavator TB210R
Takeuchi
POA
The TB210R delivers excellent performance and provides an impressive feature set in a very compact design. It features a retractable undercarriage, foldable ROPS, and minimal tail swing enabling the TB210R to work in the most confined applications.
-
Description
More Information
KEY FEATURES

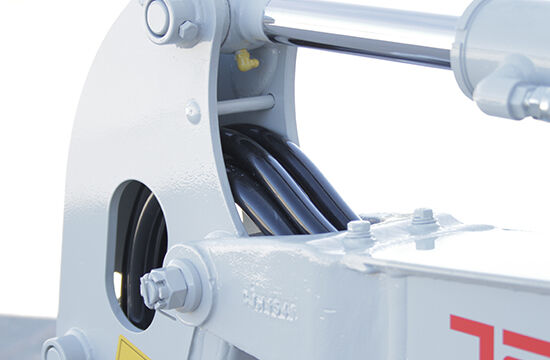

- Protected Hydraulic Plumbing – all hoses for working equipment are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.
- Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
- Minimal tail swing allows the operator to work in confined applications without concern of rear swing impacts.
- Double Flange Track Rollers – provide greater contact between the roller and rail for improved track retention.
- All Steel Construction – Protects components and ensures long term durability.
SPECIFICATIONS
Model: TB210R
Class: 1 Tonne
Operating Weight: 1150 kg
Tipping/Dumping Load Height: 2120 mm
Turning Radius: 360
Engine Horse Power: 8.7 Kw
Hydraulic Flow Rate: 22 L/min
Ground Pressure: 27.0 - 42.0 kPa
Break-Out Force: 11.2 kN
Machine Dimensions HxWxL: 2190 x 750 x 1325 -
