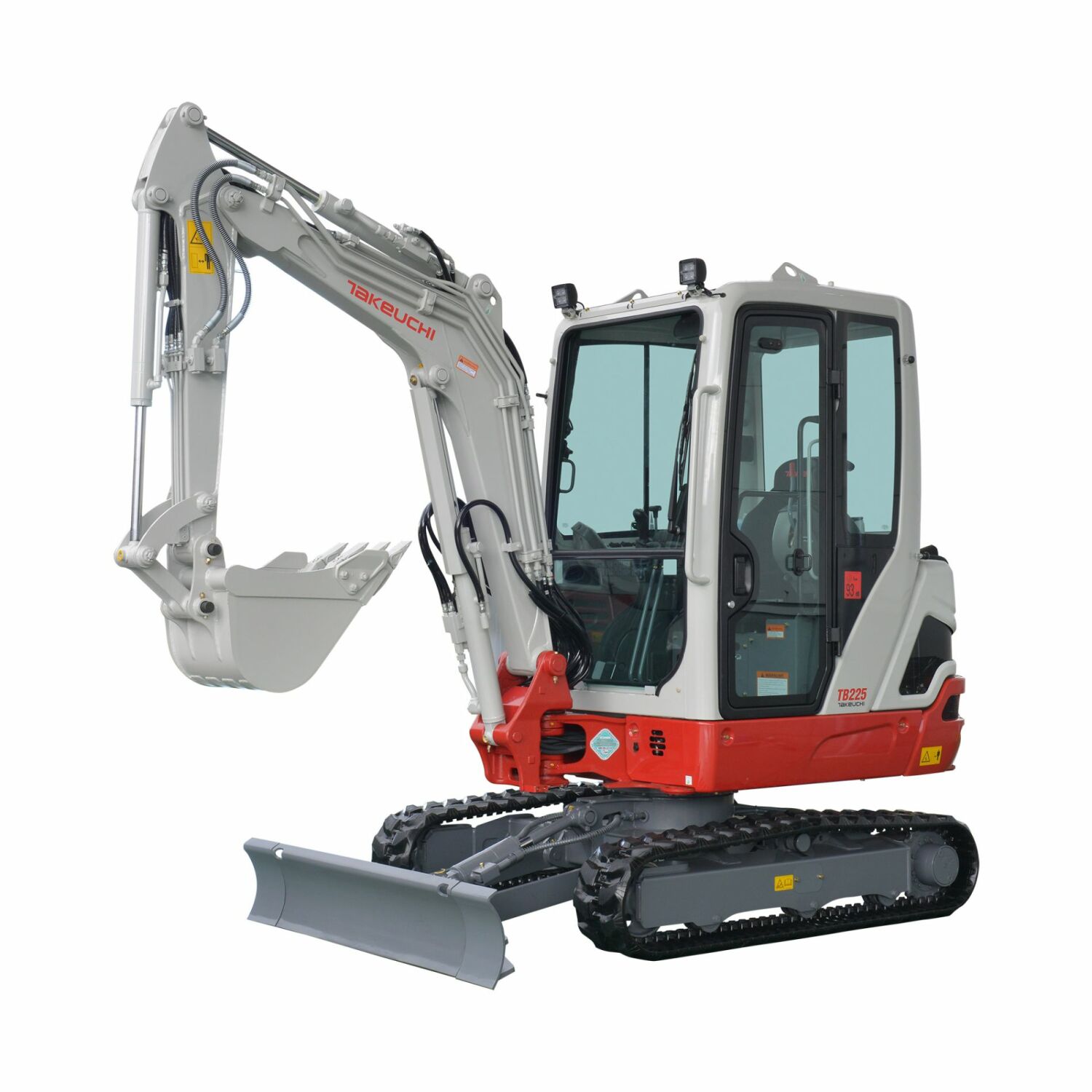

Takeuchi Compact Mini Digger Excavator TB225
Takeuchi
POA

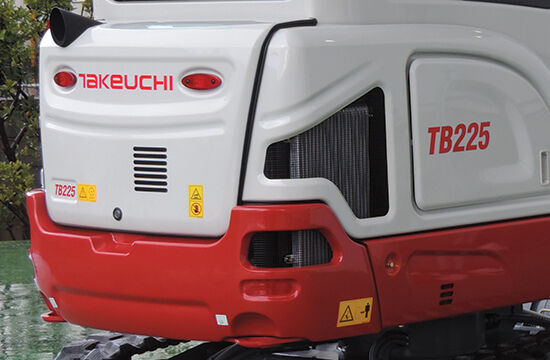

The TB225 features all steel construction, a spacious operator station, smooth hydraulic pilot joystick controls that deliver precise responsive controls and best in class engine output. The TB225 provides outstanding arm and bucket breakout force, dig depth, reach and lifting capacity for maximum productivity making it a great choice for the most demanding applications. Additional features include automatic fuel bleed system, standard auto decelaration, a large wraparound counterweight and hydraulically retractable track frame that can be adjusted from 1,100 mm to 1,500 mm. The operator is protected by a ROPS / TOPS / OPG protective structure that keeps the operator safe and comfortable on any job site.
-
Description
More Information
KEY FEATURES
- Powerful dig forces for maximum productivity
- Automatic step-down travel motors for torque on demand

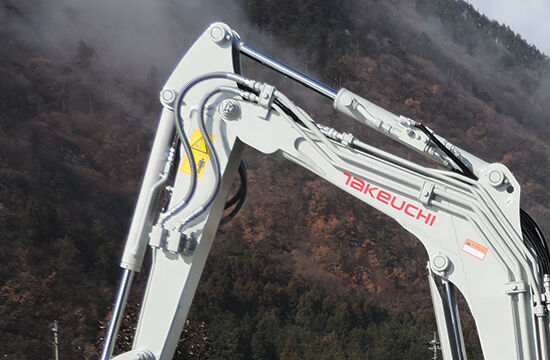

- Standard auxiliary hydraulics simplify attachment installation and improve productivity

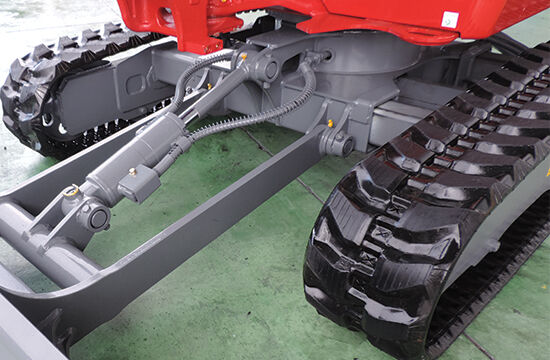

- Retractable undercarriage for excellent stability and performance

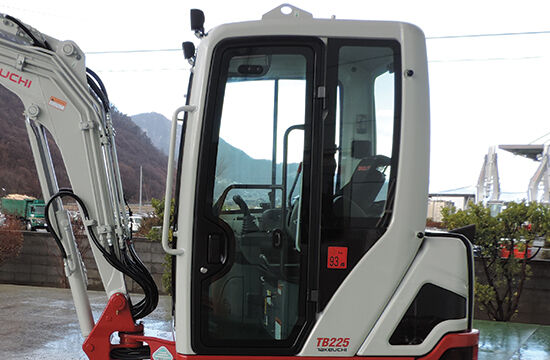

- ROPS/OPG structure and heavy-duty counterweight for safety and stability.
SPECIFICATIONS
Model: TB225
Class: 2.5 Tonne
Operating Weight: 2400 kg
Tipping/Dumping Load Height: 2800 - 2875 mm
Turning Radius: 360
Engine Horse Power: 16.5 kW
Hydraulic Flow Rate: 38.5 L/min
Ground Pressure: 28.7 - 30.4 kPa
Break-Out Force: 19.3 kN
Machine Dimensions HxWxL: 2355 x 1100 x 3070 -
