Excavators
Takeuchi Compact Medium Digger Excavator TB325R
Takeuchi
POA

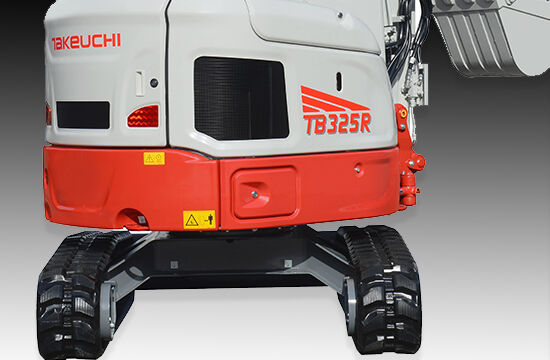

The TB325R joins Takeuchi’s 300-Series excavator line-up. This new model features a short tail-swing design which decreases the amount of overhang from the counterweight resulting in improved maneuverability and increased productivity on confined job sites.
-
Description
More Information
KEY FEATURES
- Short tail-swing design allows for work in confined spaces, increasing productivity and reducing concerns about rear swing impact
- Up to four optional service ports simplify hydraulic attachment installation, improving productivity and reducing downtime.
- Heavy-duty counterweight offers wrap-around protection and contributes to the machine's stability.

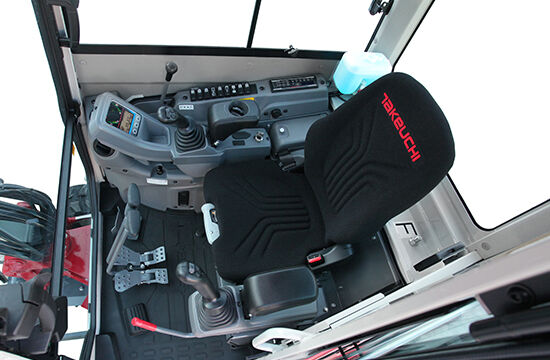

- Operator comfort is enhanced with a spacious compartment, optional folding foot pedals, suspension seat, and precise joystick controls.
- Serviceability is easy with access to the engine, hydraulic tank, water separator, and tool box, as well as a drain on the floor for easy clean-up.
SPECIFICATIONS
Model: TB325R
Class: 2.5 Tonne
Operating Weight: 2440 kg
Tipping/Dumping Load Height: 2625 - 2775 mm
Turning Radius: 360
Engine Horse Power: 16.5 kW
Hydraulic Flow Rate: 40.0 L/m
Ground Pressure: 27.6 - 29.1 kPa
Break-Out Force: 19.3 kN
Machine Dimensions HxWxL: 2420 x 1500 x 2830 -
