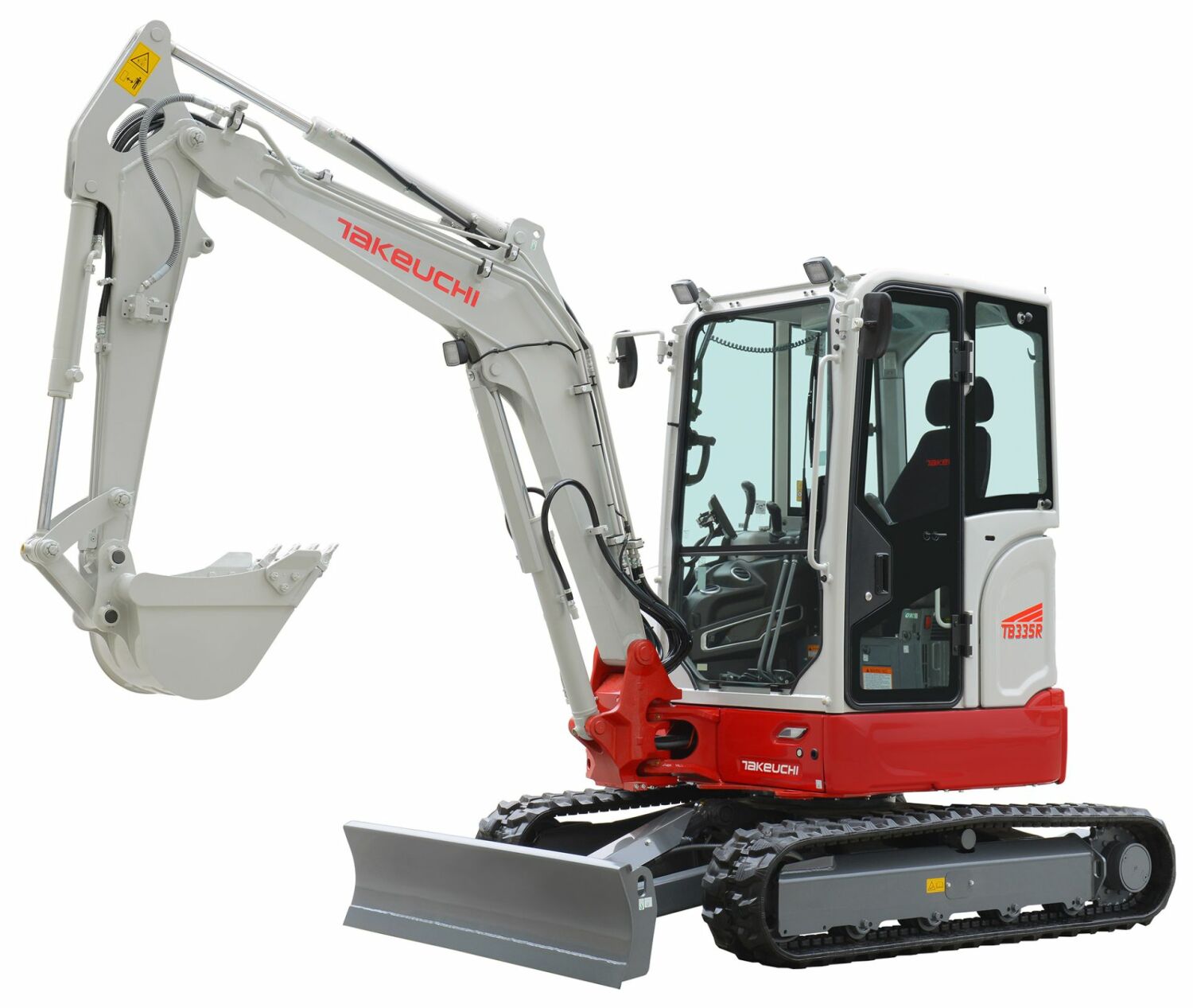

Takeuchi Compact Medium Digger Excavator TB335R
Takeuchi
POA
Takeuchi’s 300 Series excavator expanded with the TB335R, featuring a minimal tail swing design that allows operators to focus more on their work and worry less about rear swing impacts. Operators will find that the TB335R’s compact radius provides excellent maneuverability and accessibility at confined worksites without sacrificing stability. The excavator’s powerful bucket and arm crowd forces and a wide working range also deliver unmatched performance.
-
Description
More Information
KEY FEATURES
- Short tail swing design for improved maneuverability in confined job sites, reducing the risk of accidental damage and increasing productivity.
- Advanced hydraulic system with multiple auxiliary circuits, providing increased versatility and enabling the use of a wide range of attachments.
- Powerful and fuel-efficient Yanmar diesel engine, delivers exceptional performance and reducing fuel consumption, thereby decreasing operating costs.
- Spacious and comfortable operator's station with adjustable suspension seat, providing maximum comfort and reducing operator fatigue during long working hours.
- Heavy-duty construction with reinforced undercarriage and durable components, ensuring maximum uptime and reducing the need for frequent repairs and maintenance, leading to greater profitability for the customer.
SPECIFICATIONS
Model: TB335R
Class: 3.7 Tonne
Operating Weight: 3605 - 3760 kg
Tipping/Dumping Load Height: 3430 - 3530 mm
Turning Radius: 360
Engine Horse Power: 18.2 kW
Hydraulic Flow Rate: 64.4 L/min
Ground Pressure: 30.8 - 32.1 kPa
Break-Out Force: 27.1 kN
Machine Dimensions HxWxL: 2520 x 1740 x 4890 -
