Excavators

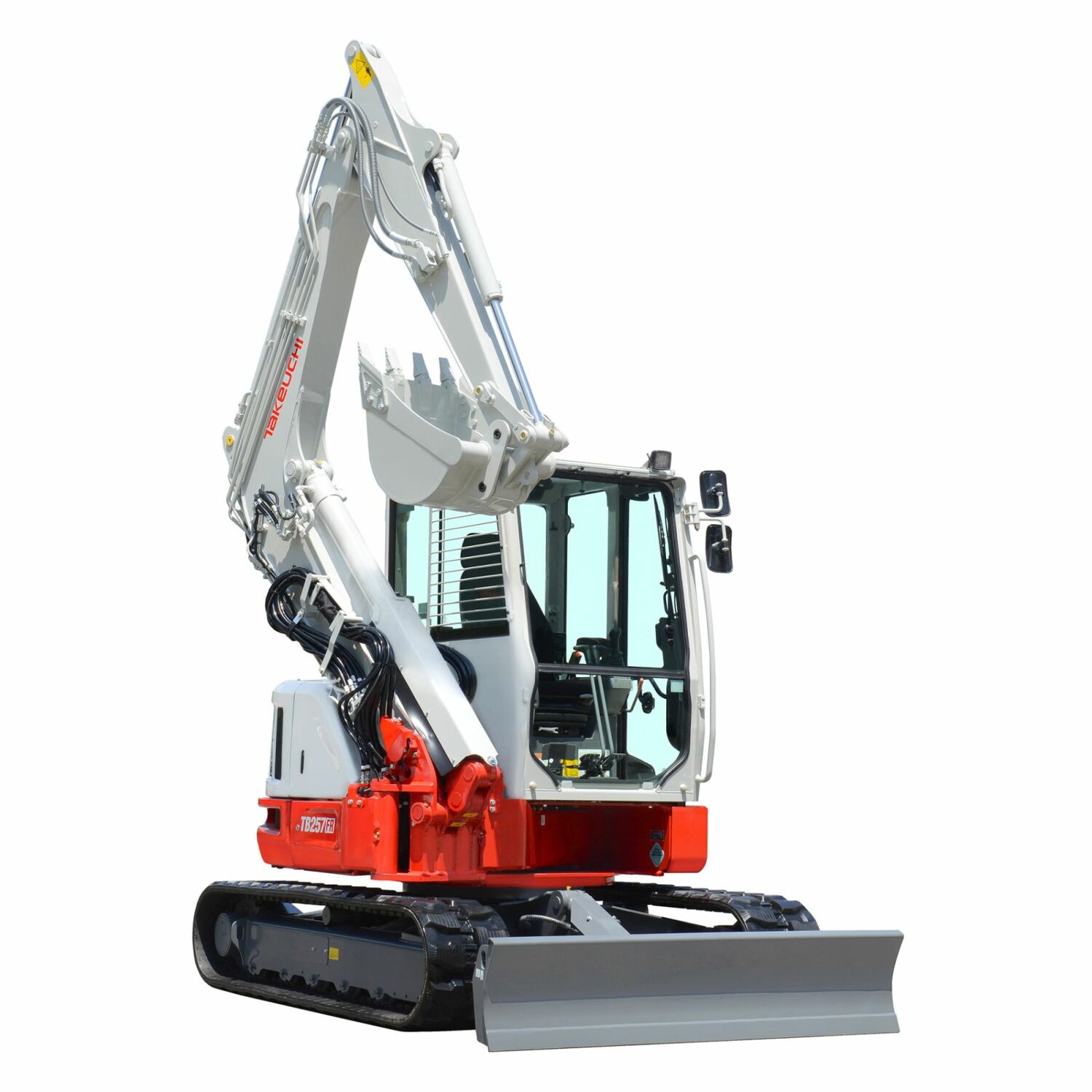

Takeuchi Compact Medium Digger Excavator TB257FR
Takeuchi
POA
The patented side-to-side (STS) offset boom combined with the tight tail swing on the TB257FR provides unmatched visibility to the work equipment and enables it to rotate fully with very little overhang. Its low center of gravity and optimized counterweight placement creates an extremely stable platform with lifting capabilities similar to that of a conventional machine.
-
Description
More Information
KEY FEATURES

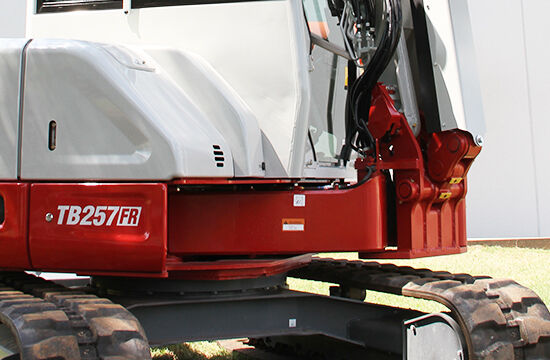

- Patented side-to-side (STS) boom configuration for unmatched visibility and manoeuvrability in tight spaces.
- Minimal tail swing allows for full rotation without hitting obstacles.
- Powerful turbocharged engine provides 32% more output.

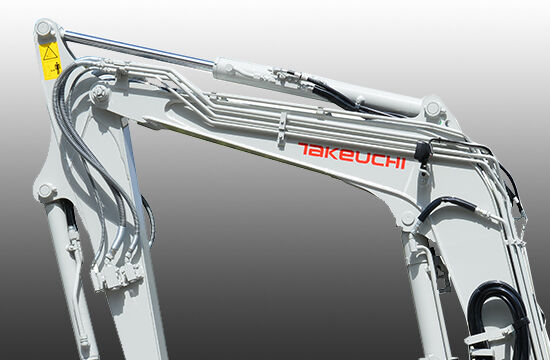

- Improved hydraulic performance with 19% more traction force and increased flow and pressure.

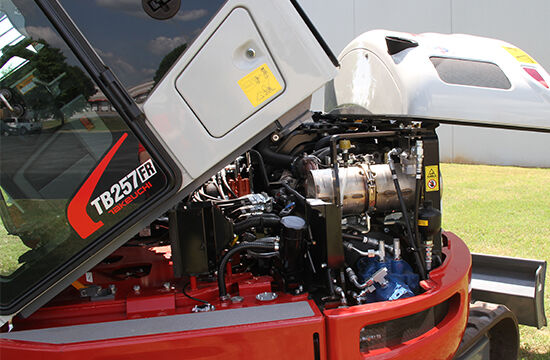

- Enhanced maintenance and serviceability with forward-tilting cab design and redesigned counterweight.
SPECIFICATIONS
Model: TB257FR
Class: 5.7 Tonne
Operating Weight: 5725 - 5840 kg
Tipping/Dumping Load Height: 3720 - 3890 mm
Turning Radius: 360
Engine Horse Power: 39.0 kW
Hydraulic Flow Rate: 105 L/min
Ground Pressure: 32.5 - 33.1 kPa
Break-Out Force: 36.6 kN
Machine Dimensions HxWxL: 2620 x 2000 x 3770 -
Product Files
