Track Loaders & Skid Steers

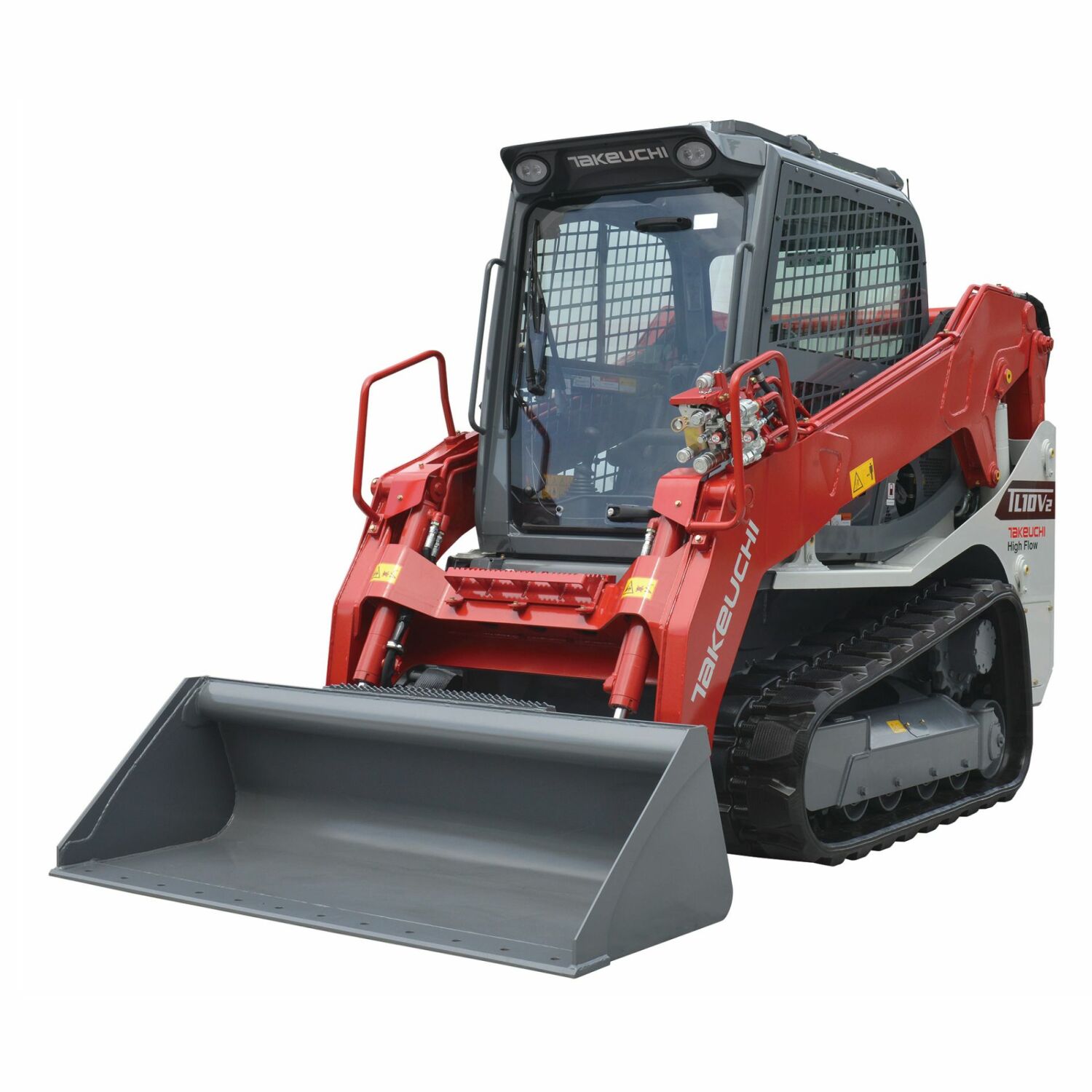

Takeuchi TL10V2 Track Loader
Takeuchi
POA

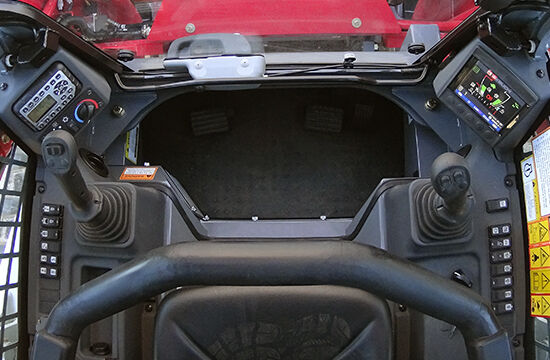

The TL10V2 features a vertical lift loader arrangement and is Final Tier 4 emissions compliant. The cab is completely redesigned and enlarged and features a low effort overhead door design for improved entry and egress. A quiet track design with wide block tread reduces vibration, noise levels, and improves ride quality.
-
Description
More Information
KEY FEATURES
- The TL10V2 features a vertical lift loader arrangement and is Final Tier 4 emissions compliant. The cab is completely redesigned and enlarged and features a low effort overhead door design for improved entry and egress. A quiet track design with wide block tread reduces vibration, noise levels, and improves ride quality.
SPECIFICATIONS
Model: TL 10V2
Class: 4.5 Tonne
Operating Weight: 4515 - 4660 kg
Tipping/Dumping Load Height: 2435 mm
Turning Radius: 360
Engine Horse Power: 55.4 kW
Hydraulic Flow Rate: 124 L/min
Ground Pressure: 34.3 - 35.4 kPa
Break-Out Force: 29.0 kN
Machine Dimensions HxWxL: 2270 x 1740 x 3680 -
